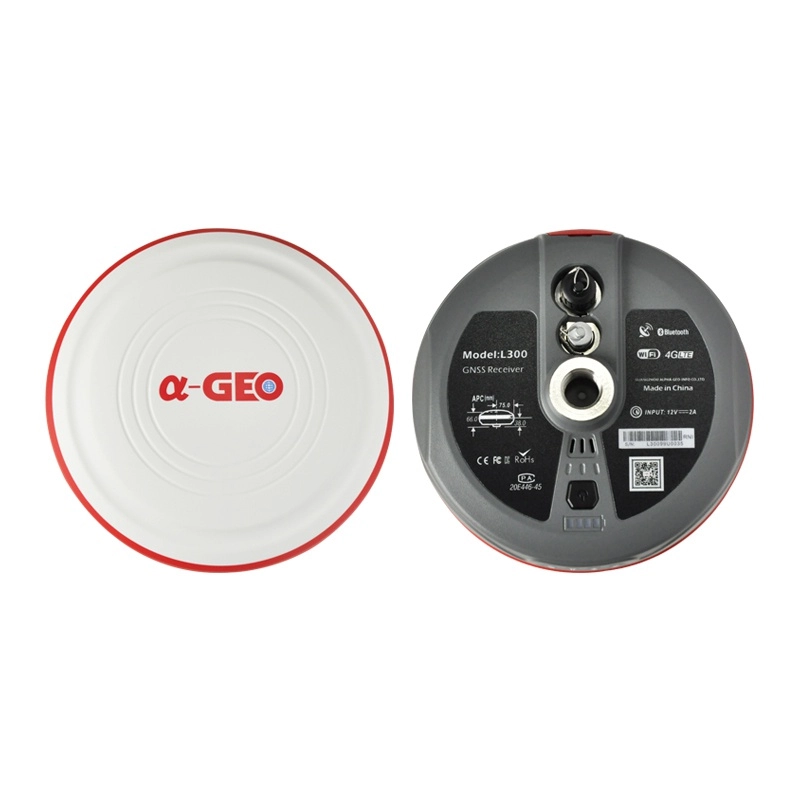

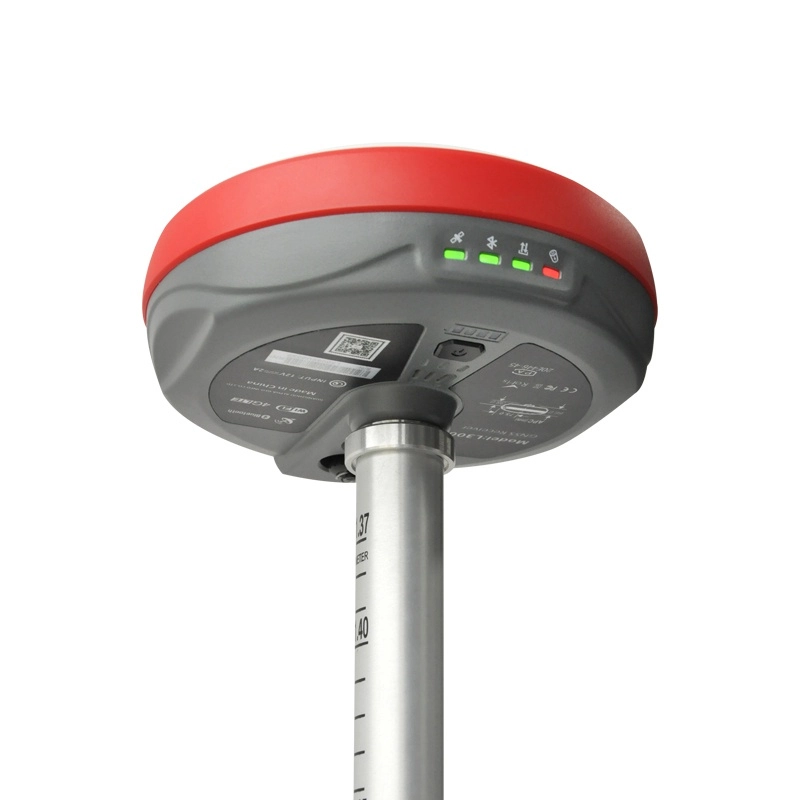

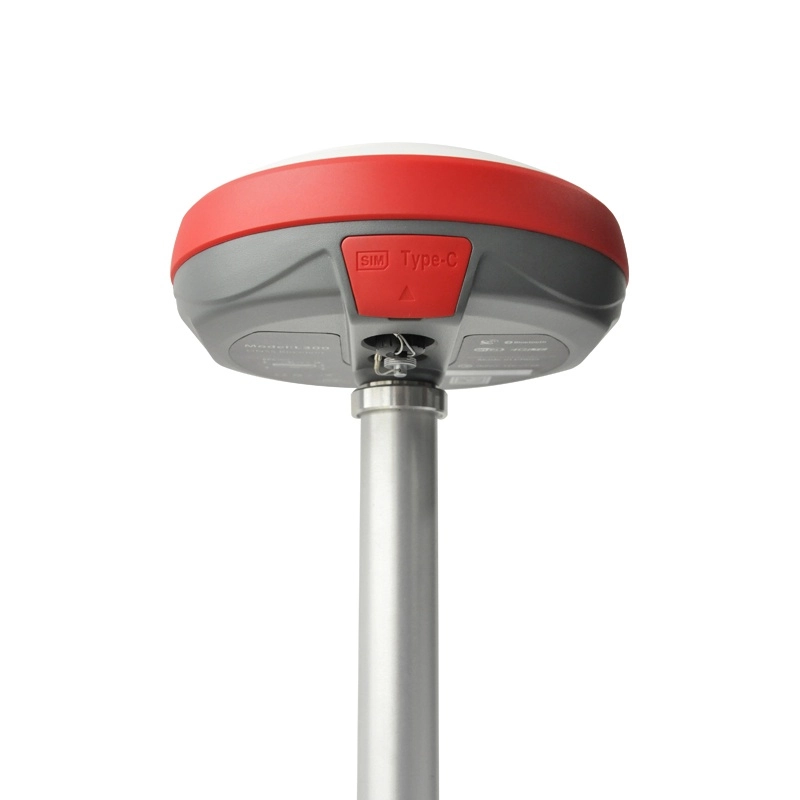

1408 channels compact new generation of smart GNSS receiver L300 for any surveying project

L300 is a compact new generation of smart GNSS receiver designed for any surveying project using the latest GNSS technology.This receiver is equipped with all modern required connectivity modules: Bluetooth, Internal radio,WIFI & 4G modem. 6800mAh Built-in battery, IMU tilt technology and WebUl are other latest technologies used in L300 receivers.

Inquire Now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

Features

Multi constellation
L300 with its 1408 channels new generation full GNSS chipset & ability to support multiple satellite constellation including GPS, GLONASS, BEIDOU, GALILEO, QZSS, SBAS and IRNSS provides precise and accurate spatial data for all users around the world.
WiFi and WebUI
L300 serves as a WIFI hotspot, so users can easily access, manage the status, set the configuration or download static and PPK raw data through advanced WebUI using computer, smartphone or other electronic devices with WIFI support without any need to third party software or cable.
IMU Tilt Sensor
L300 is equipped with a fast initialization, calibration free & immune to magnetic interference Inertial Measurement Unit (IMU). All users can use this technology to collect or stakeout topo points up to 60°.

GSM & UHF radio
A fast internet connection is guaranteed with a built-in 4G module thataccelerate receiving correction data using all telecommunication signalsand bands. L300 comes with an integrated 15 km-range Tx/Rx internal UHFradio that ranges from 410 MHz to 470 MHz with selectable frequencyproviding ability to connect and collect accurate real time data in Base/Rover mode.
Battery & Power
L300 is delivered with an internal large capacity 6800mAh lithium-ion internal battery supporting USB type-C fast charging which allows users to work for more than 12 hours in daily field work.
Working mode
Every surveyor needs to operate and choose suitable working method based on project requirements and required accuracy. In order to work in such condition users will need a device to be able to work in different modes such as Static, Network RTK, UHF RTK, PPK & etc. L300 is offering all you need in a package!

Specifications

Performance specification	Satellite signals tracked simultaneously	GPS: L1C/A, L1C, L2P(Y), L2C, L5
		GLONASS: L1, L2,L3
		BEIDOU: B1l, B2l, B3l, B1C, B2a, B2b
		GALILEO: E1, E5a, E5b,E6
		QZSS: L1, L2, L5, L6
		SBAS: L1, L5
		IRNSS: L5
	Channels	1408
	Cold start	<60 s
	Hot start	<15 s
	Positioning output rate	1Hz - 20Hz
	Signal Reacquisition	<1s
	RTK Initialization time	<10s
	Initialization Reliability	>99.99%
	Time accuracy	20 ns
Positioning¹	Code differential GNSS positioning	Horizontal: 0.25 m + 1 ppm RMS
		Vertical: 0.50 m + 1 ppm RMS
		SBAS differential positioning accuracy² : typically <5m 3DRMS
	Static GNSS surveying	Horizontal: 2.5 mm + 0.5 ppm RMS
	Static GNSS surveying	Vertical: 5 mm + 0.5 ppm RMS
	Single Baseline < 30 KM	Horizontal: 8 mm + 1 ppm RMS
	Single Baseline < 30 KM	Vertical: 15 mm + 1ppm RMS
	Network RTK³	Horizontal: 8 mm + 0.5 ppm RMS
	Network RTK³	Vertical: 15 mm + 0.5 ppm RMS
PHYSYCAL	Material	magnesium alloy
	Dimensions	150mm * 71mm (without bottom connector 60mm)
	weight	≤1.0 Kg
	Operating temperature	-40°C to + 75°C
	Storage temperature	-55°C to + 85°C
	Protection IP	IP67 dust proof, protected from 30min immersion to depth of 1m
	Shock	survive a 2m pole drop onto concrete
	Vibration	MIL-STD-810G
	Humidity	100%, condensing
ELECTRYCAL	Power: 9~24 V DC external power input on 5 pin LEMO port
	Support USB Type-C fast charging
	Internal 6800mA lithium-ion battery
	Battery Life	Rover Mode: 12 hours
		Base Mode: 7 hours
		Static Mode: 15 hours
Communication & Data Storage	I/O interface	LEMO port (5pin): supports power input, serial port control, and external radio communication
		USB Type-C port: Data download / Charging
		Sim card slot: supports Nano-SIM
		Antenna port: UHF antenna interface
	Radio modem	Transmit power: 1/2 w switchable,Work range can reach to 15km under AlphaTalk15 protocol
		Frequency band: 410MHz-470MHz; supports to set the frequency
		Protocols: AlphaTalk15, TrimTalk450s, SOUTH, Satel,PCC-EOT
	Cellular	Integrated full frequency multi band 4G modem, supports WCDMA/CDMA2000/TDD- LTE/FDD-LTE
	WIFI	802.11 b/g standard, access point & client mode, supports access to hotspot for correction transmission
	Bluetooth	Fully integrated Bluetooth V 4.0, range ≤ 50m
	Data format	RTCM2x, RTCM3x, CMR & CMR+, sCMRx, Dat, RINEX, NMEA outputs
	Storage	32GB internal memory, supports cyclic storage; with ability to collect over one year raw observation based on 5 seconds interval
Others	System integration	OS system: intelligent LINUX operating system
		Tilt Compensation: IMU up to 60° (Calibration free)
		Relay station: CORS relay, Radio relay
		Supported controllers: all android devices with supported software
	Design	button: power key

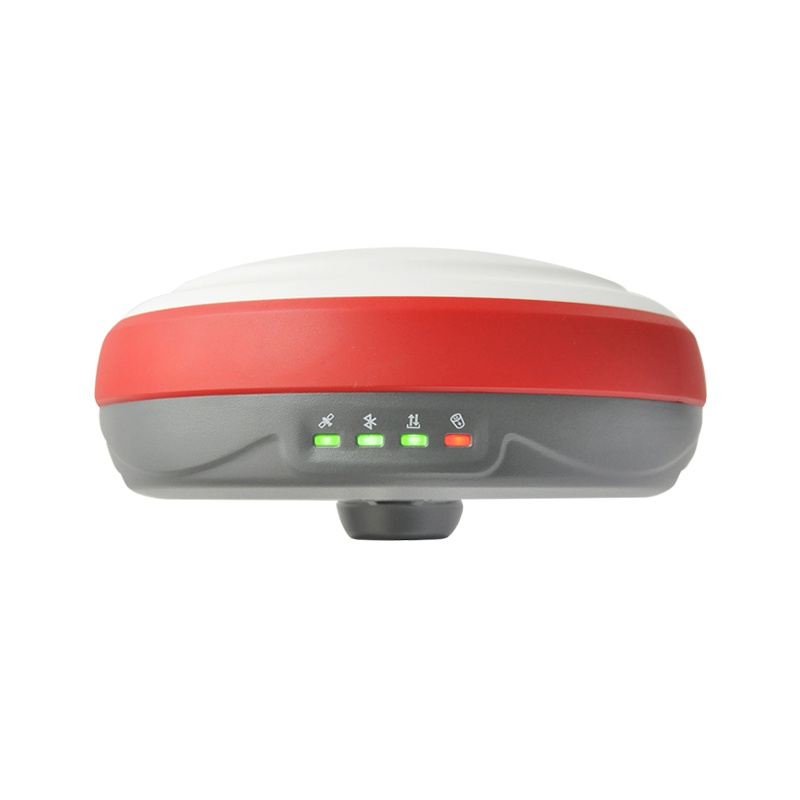

		Indicator: power indicator, data link indicator, satellite indicator, Bluetooth indicator
		Voice: intelligent voice prompts
		WEBUI: support WEBUI configuration
