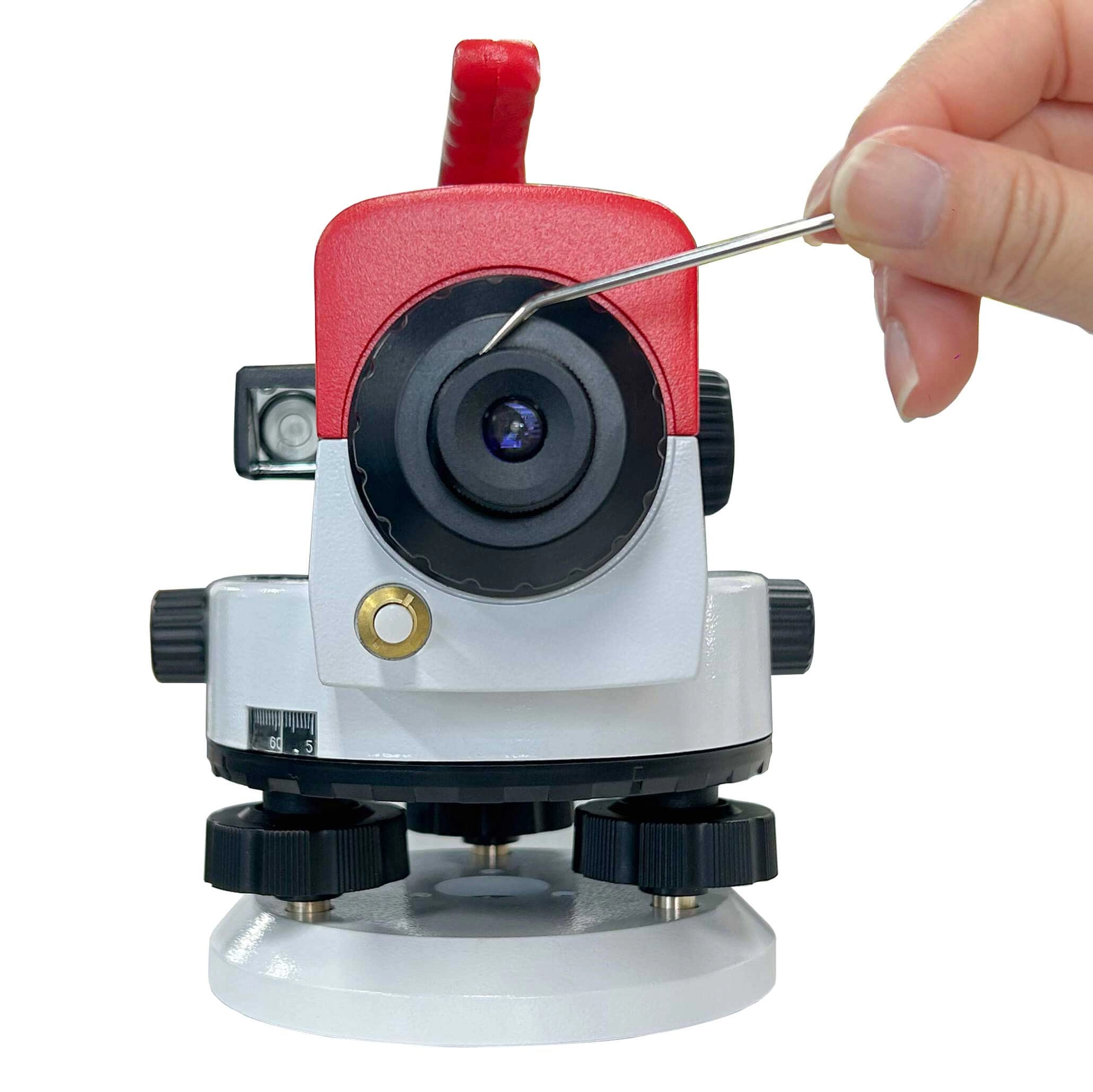

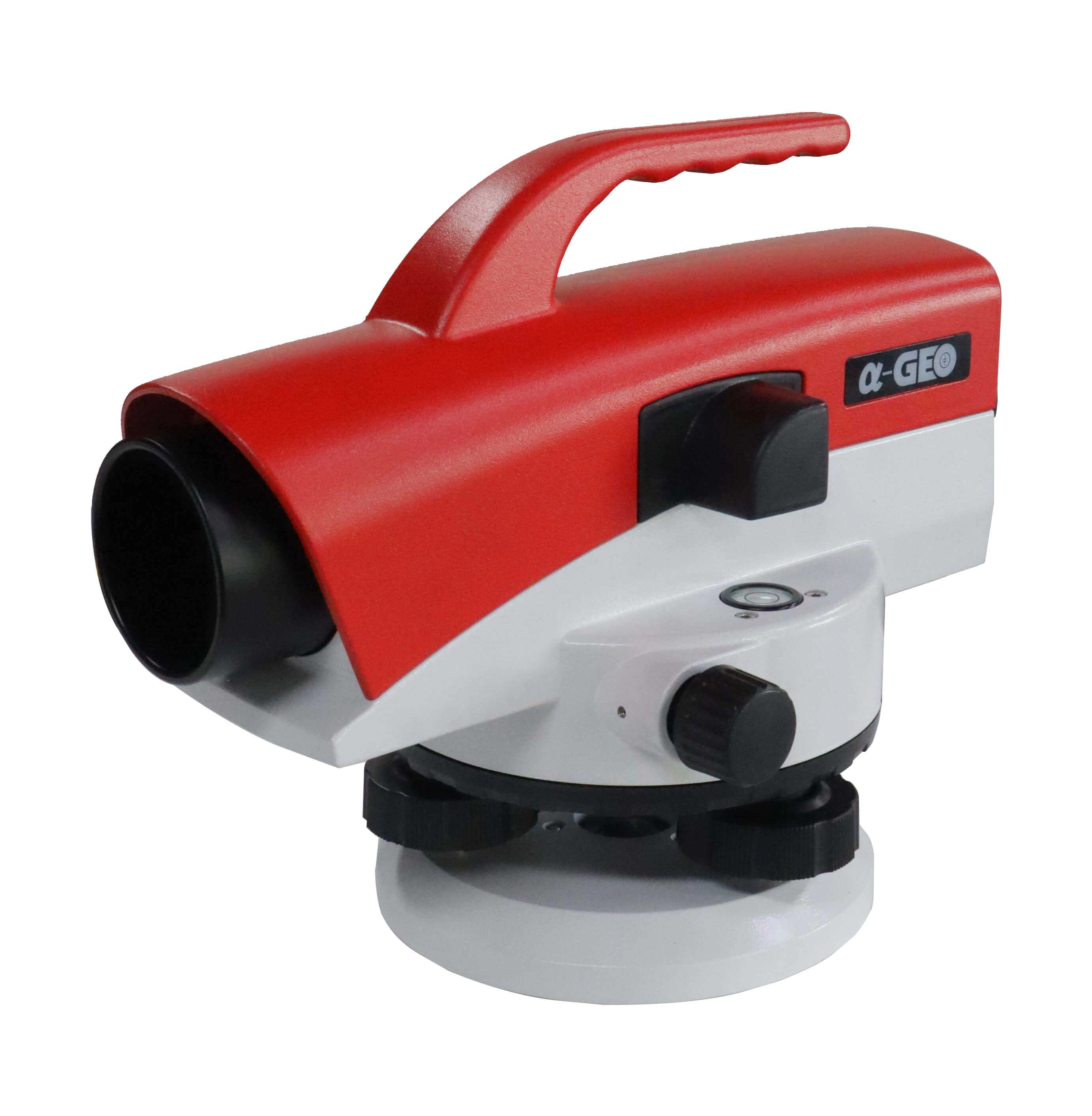

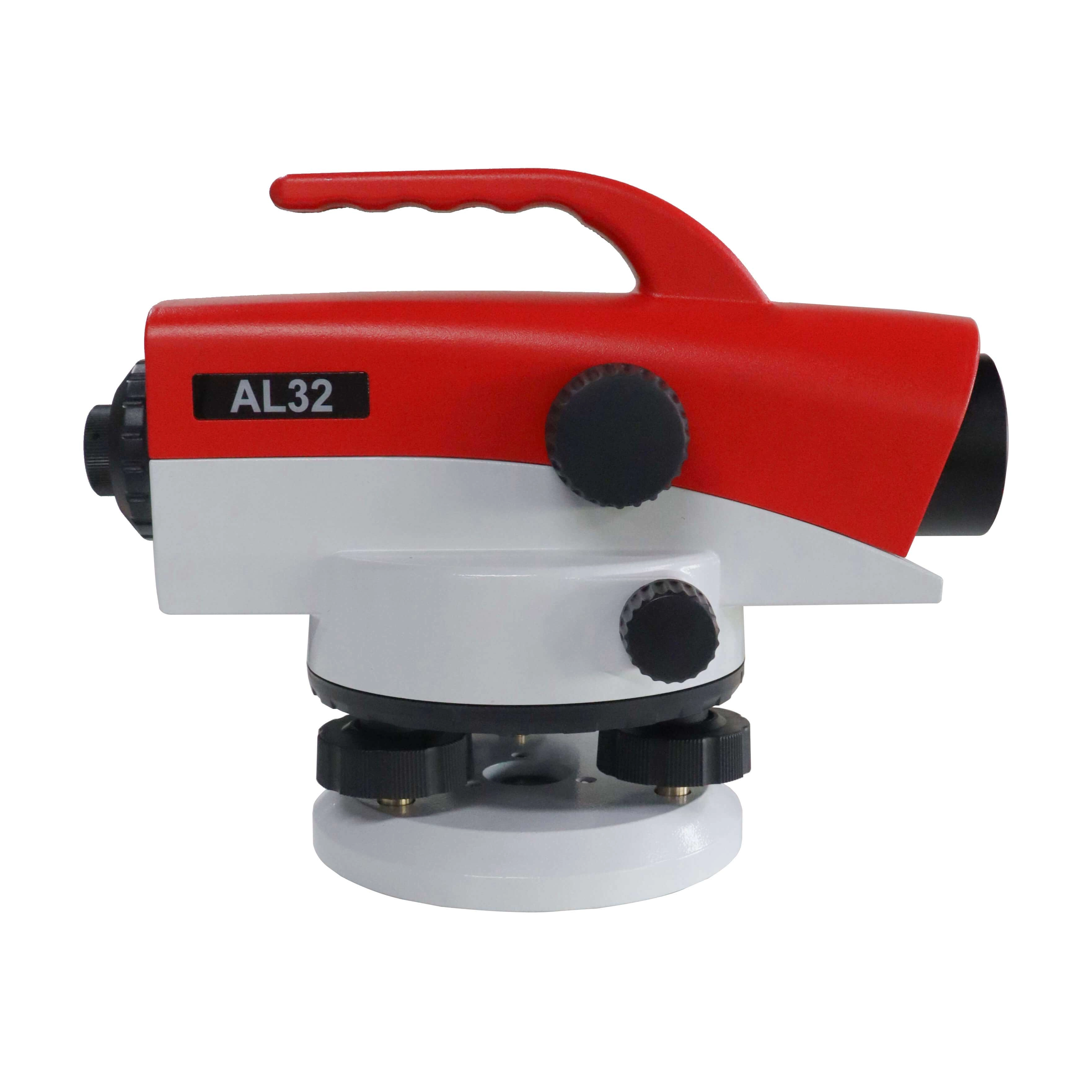

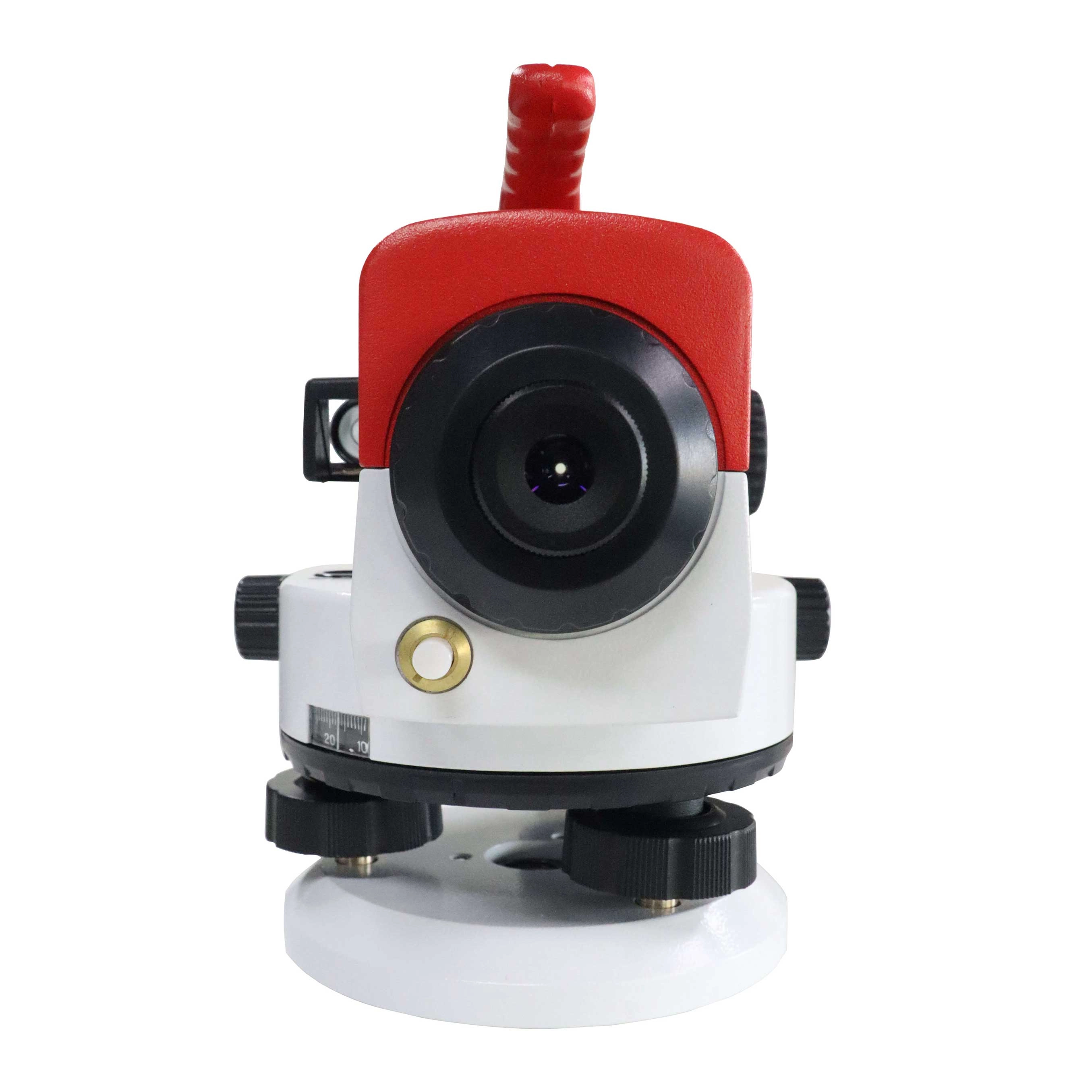

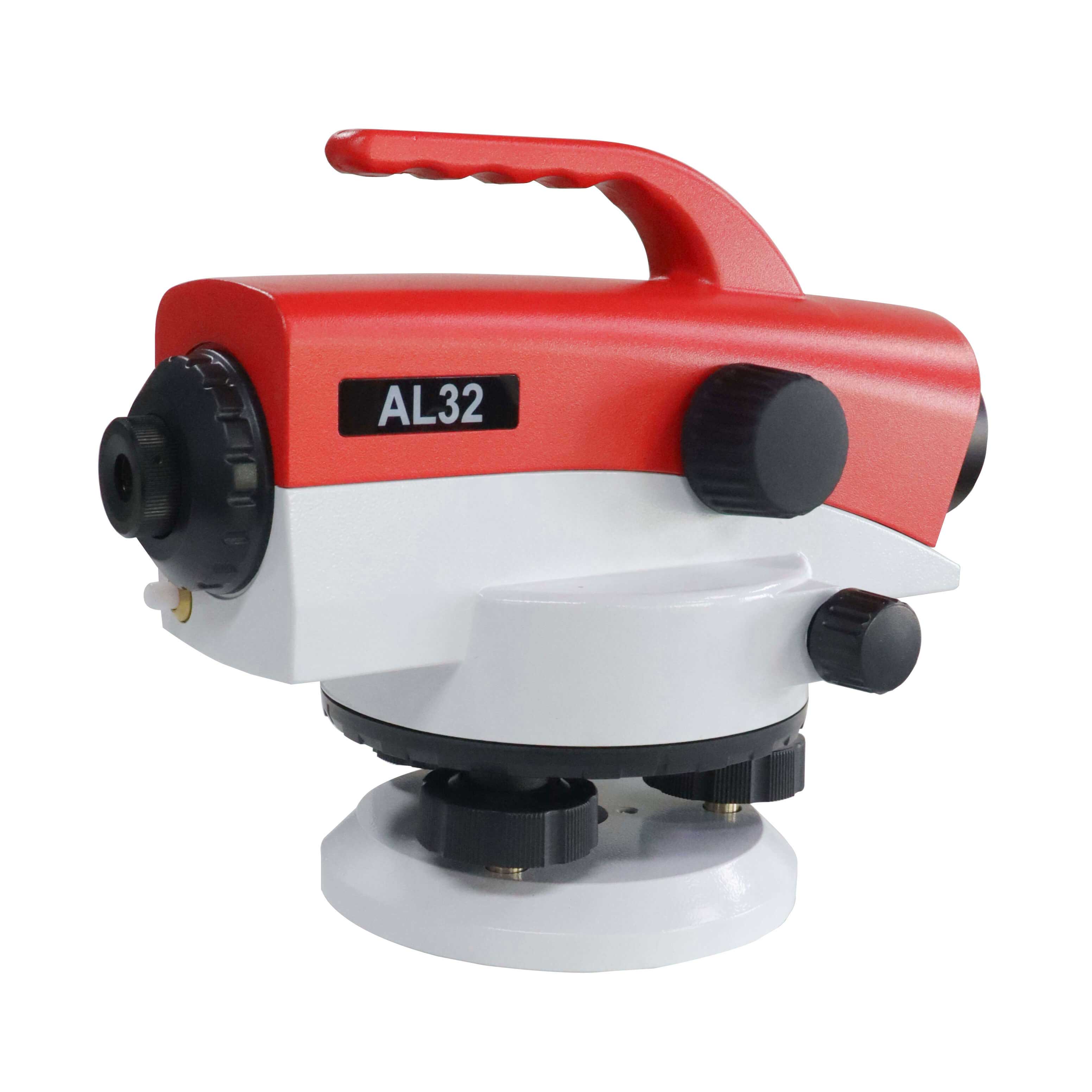

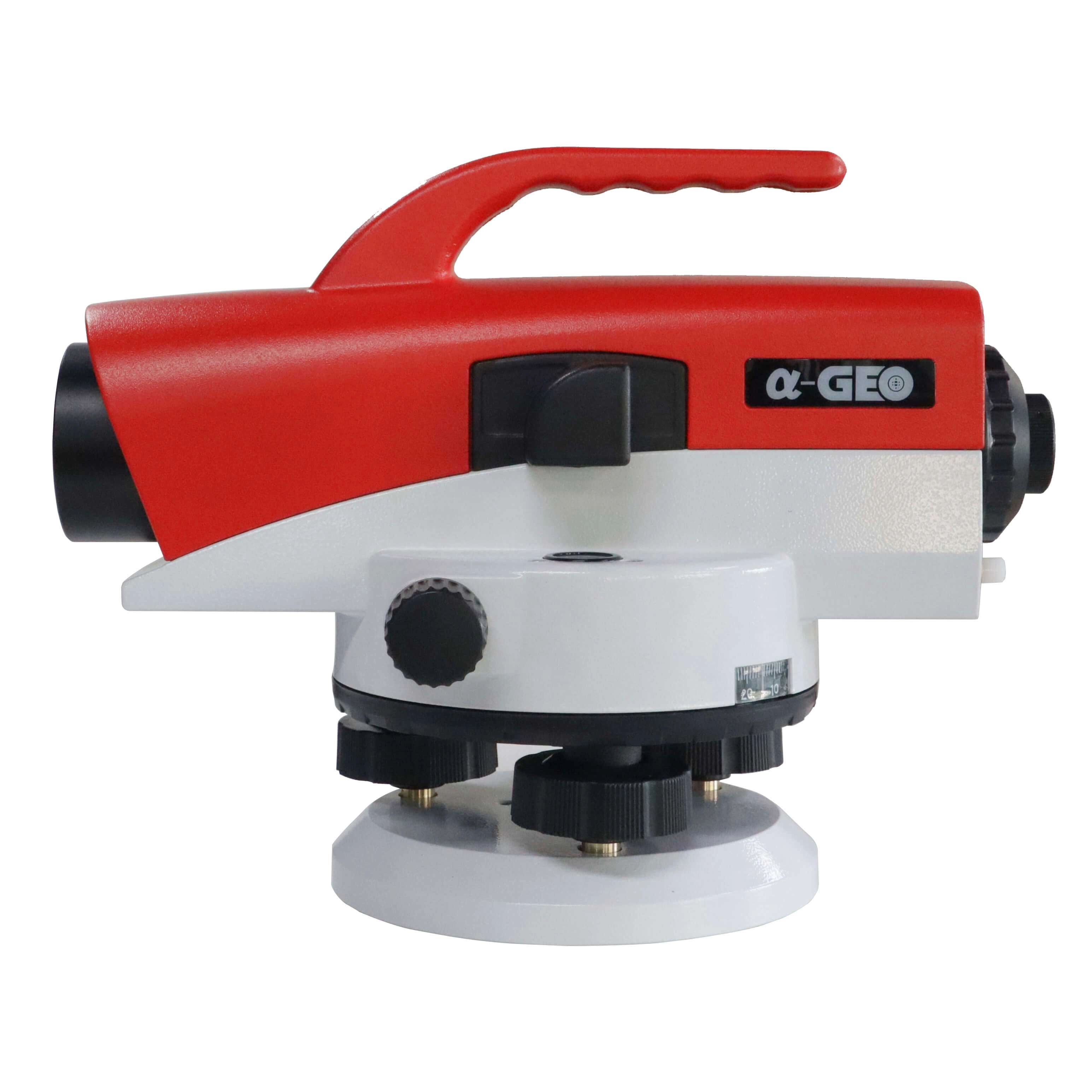

Automatic Level ALPHA AL32 used for normal leveling surveying applications
The ALPHA AL32 automatic level can be used for 3rd or 4th order leveling,building constructions and normal leveling surveying applications.The automatic compensator, which adopts crossed suspension tapes and air damper, greatly improves the work efficiency and leveling accuracy. The AL32 is also equipped with a press bottom for compensator checking.The metal body design provides better protection.

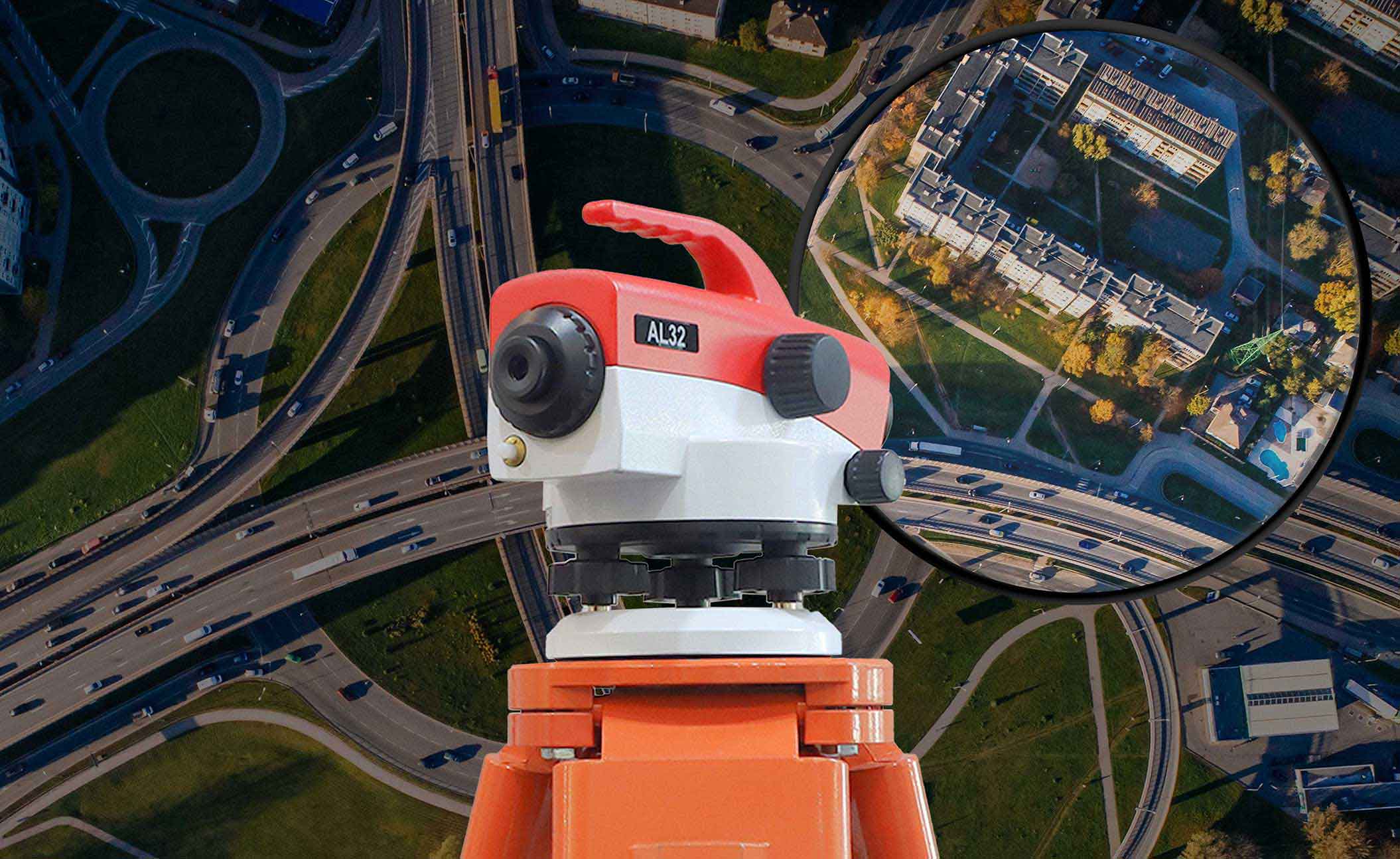

32x objective lens
32x telescope, long measuring distance Wide operating range, clear imaging

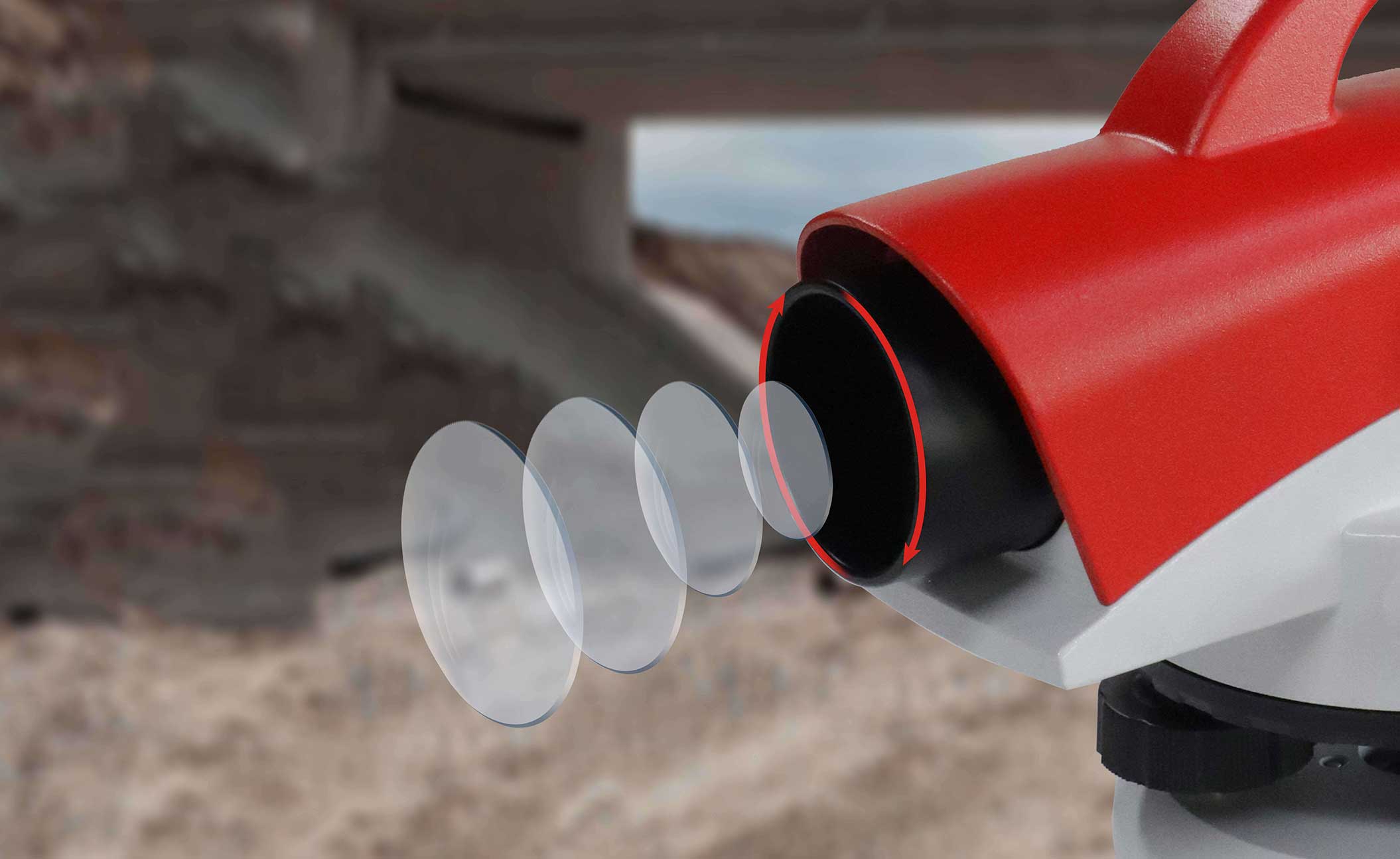

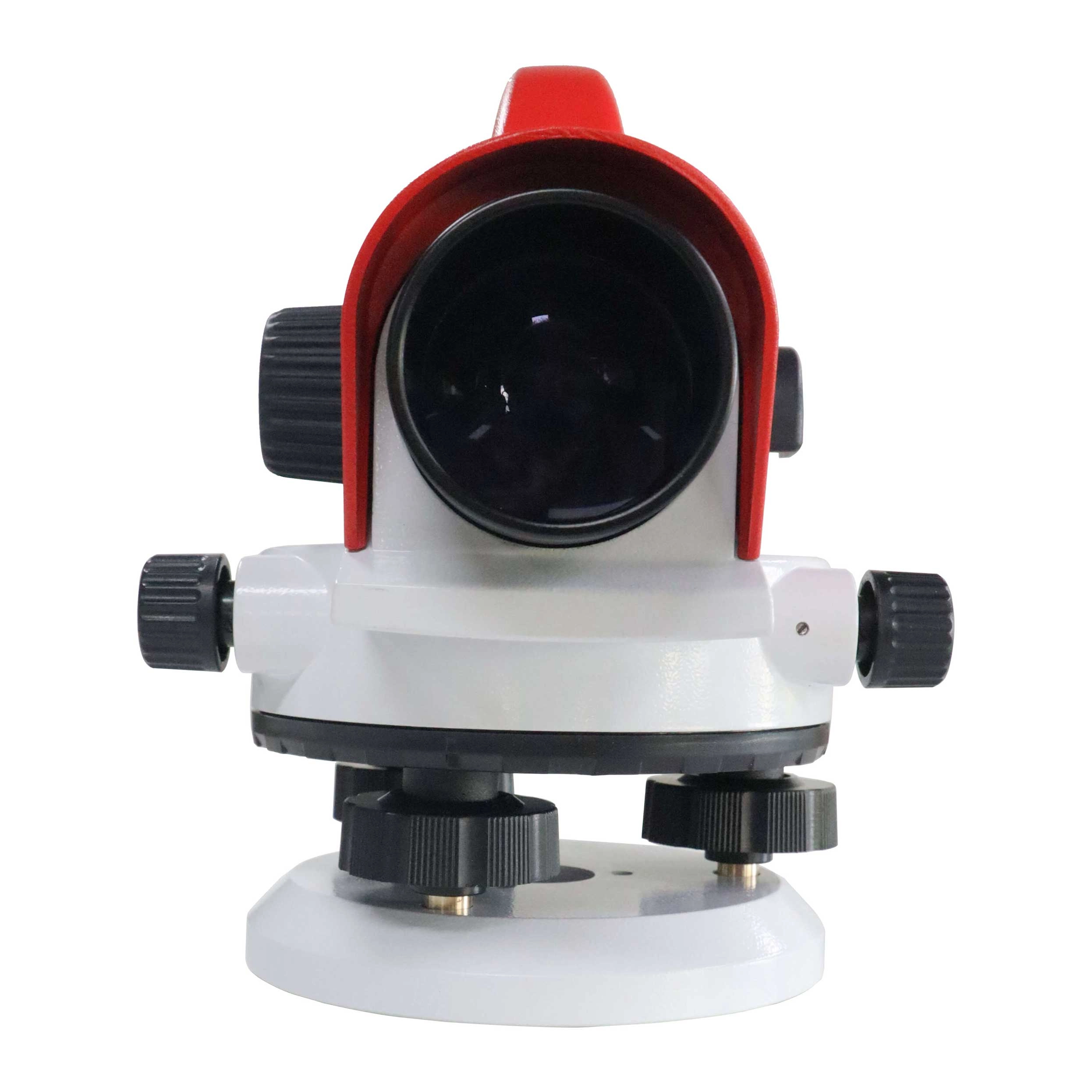

40 mm large aperture telescope
Adopts high-definition coated lenses to ensure imaging clarity

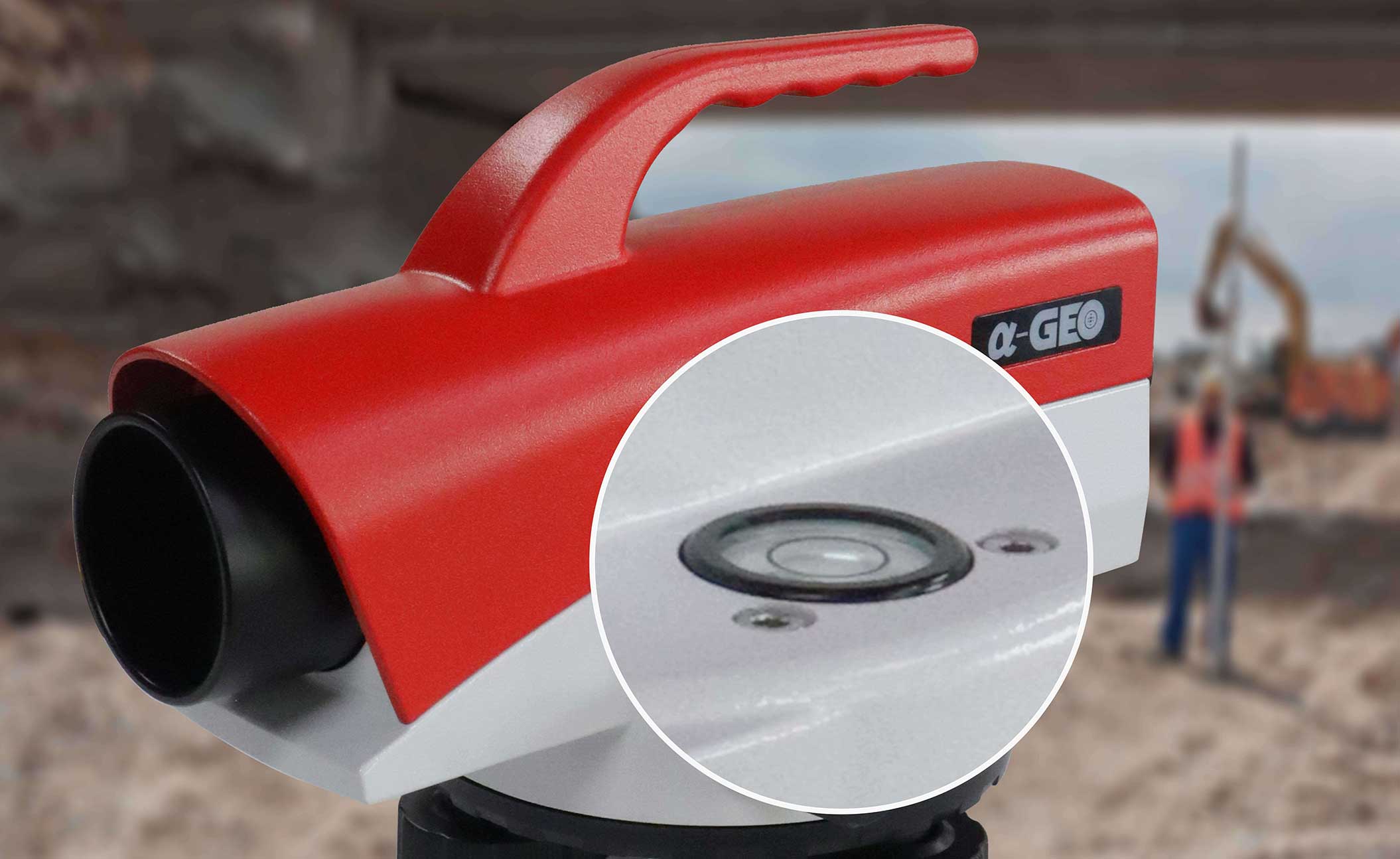

8’/2mm Accuracy of Circular Level
Grasp the overall balance of the product bod
Metal body

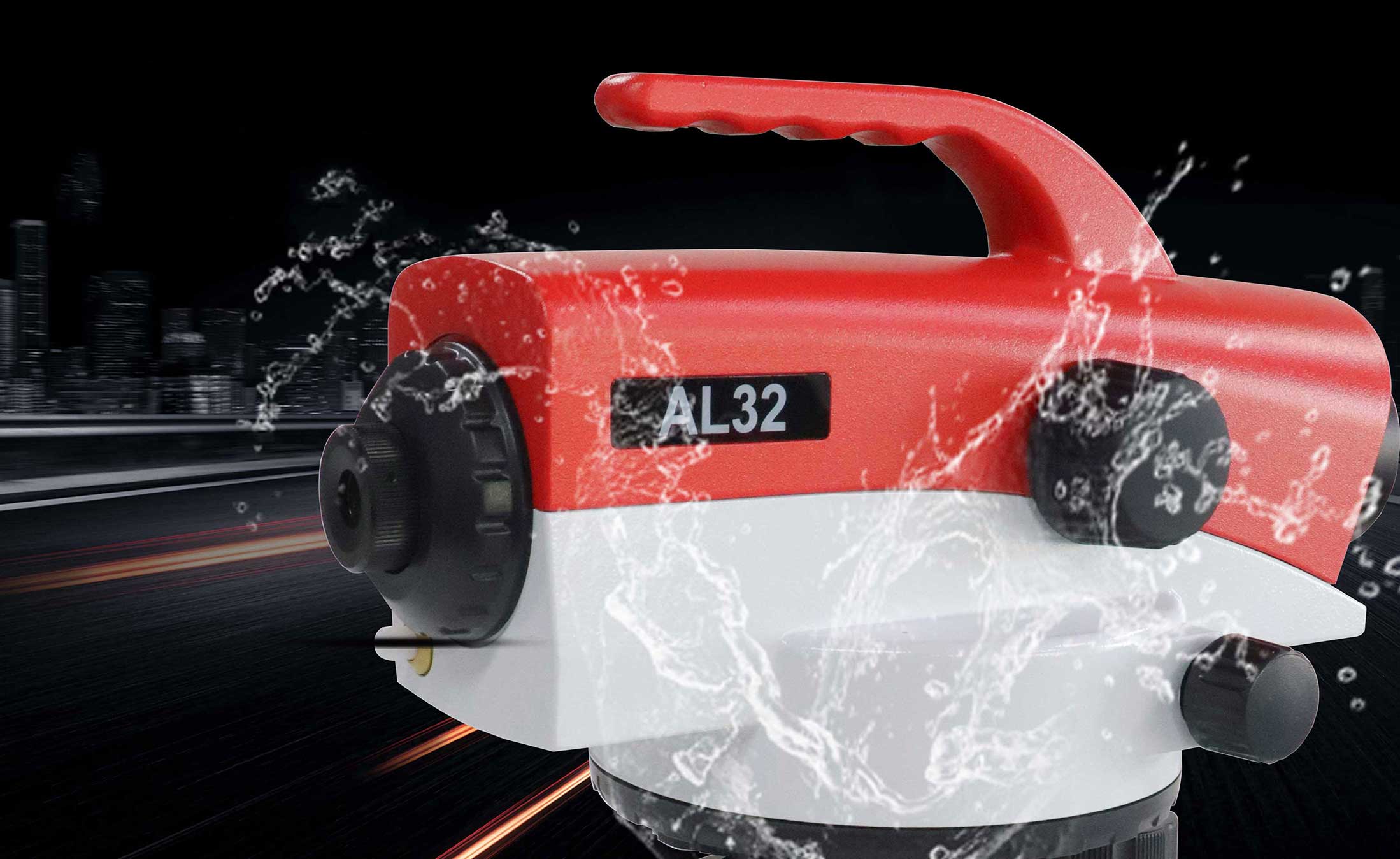

IP54 waterproof and dustproof, can still work in harsh environments
Specifications
Telescope Magnification | 32X |
Standard Deviation for 1km Double-run Leveling | 1.0mm |
Setting Accuracy | ±0.3” |
Compensator Working Range | ±15’ |
Telescope Image | Erect |
Effective Aperture Size of Objective | 40mm |
Angle of FOV | 1°17.5’ |
Shortest Sighting Distance | 0.5m |
Stadia Multiplication / Addition Constants | 100/0 |

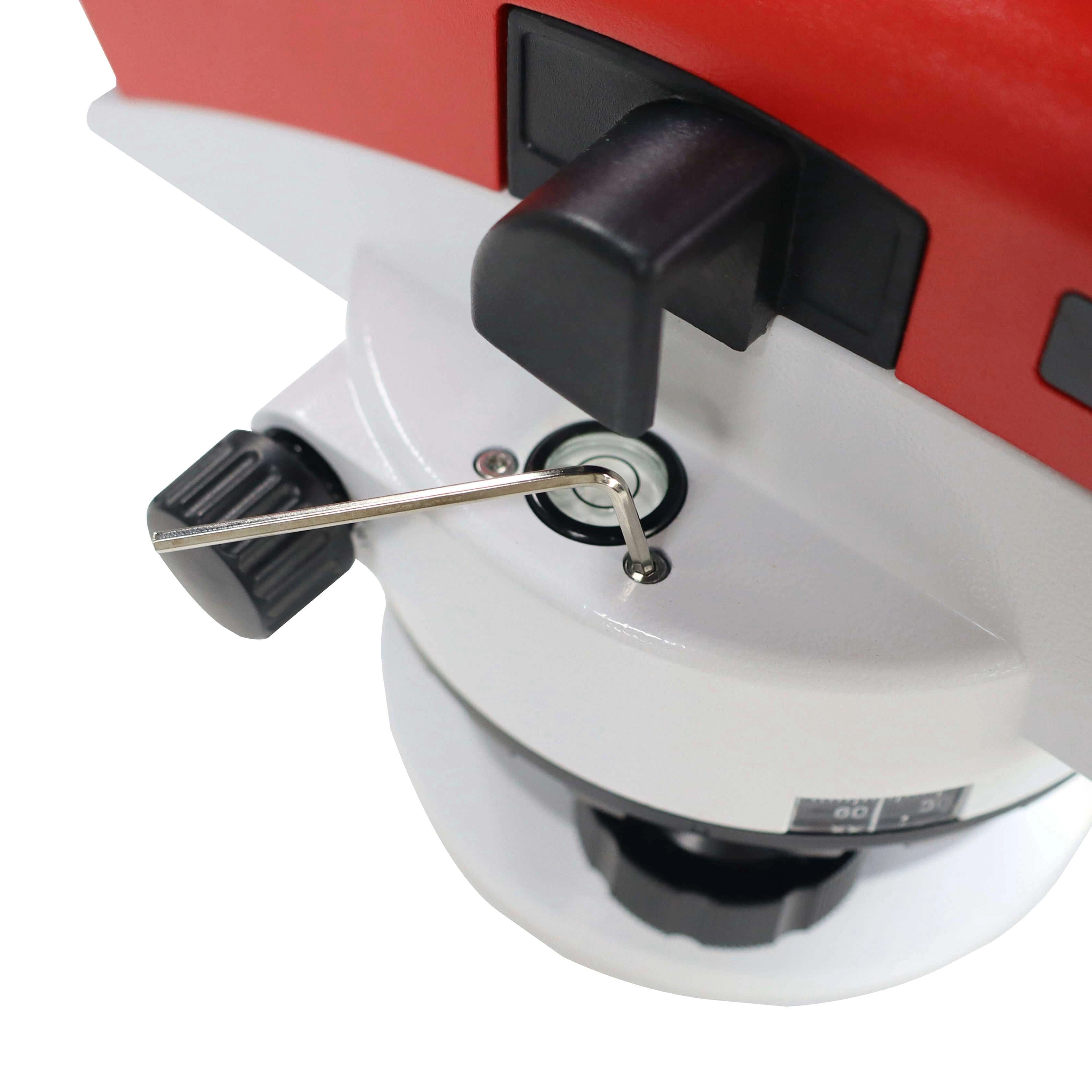

Accuracy of Circular Level | 8’/2mm |
Graduation Value | 360°or 400gon |
Degrees of Protection | IP54 |
Compensator Type | X wire-hung and air-damping |
Instrument Size | 229mm x 145mmx175mm |
Net Weight | 1.8Kg |
