Home Data Controller

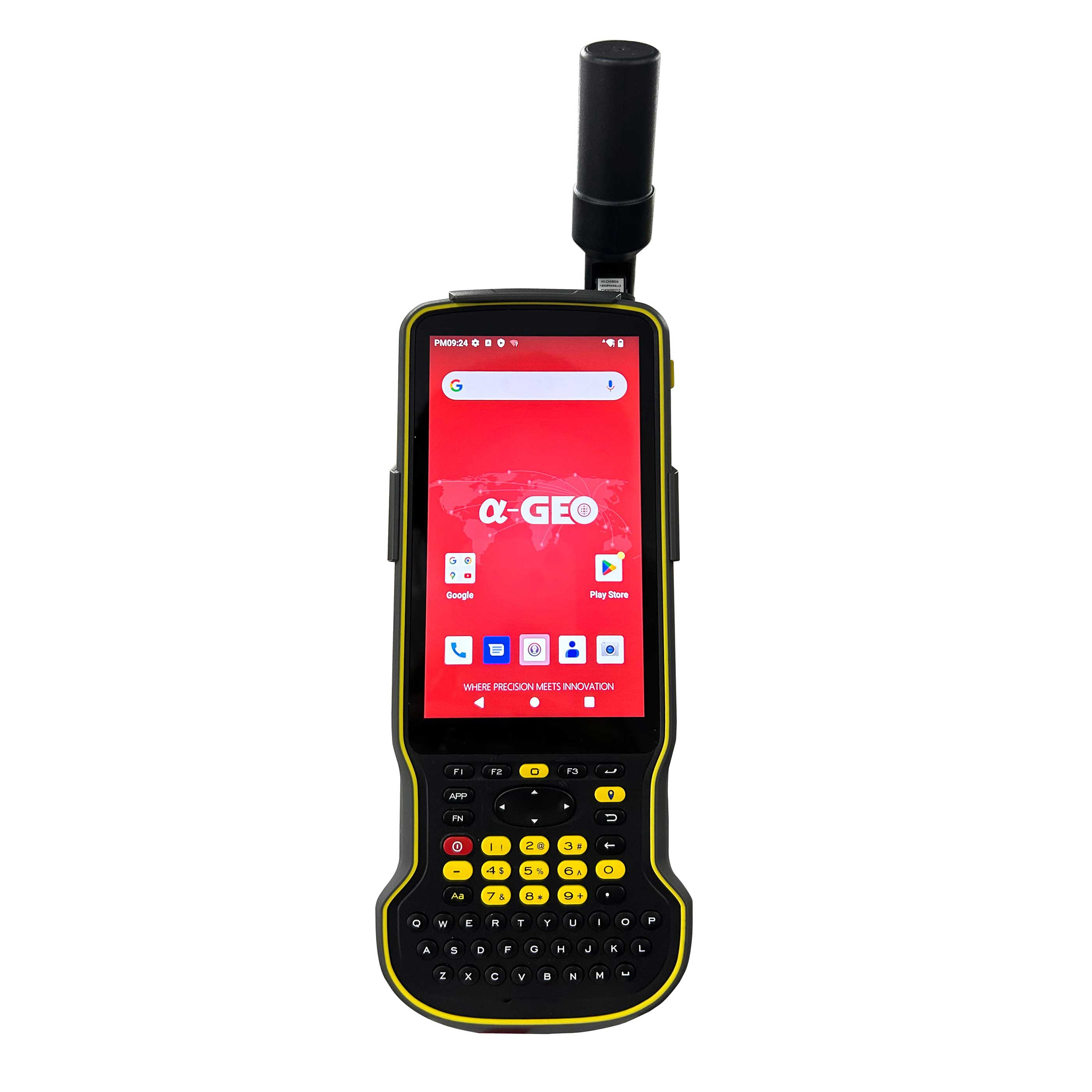

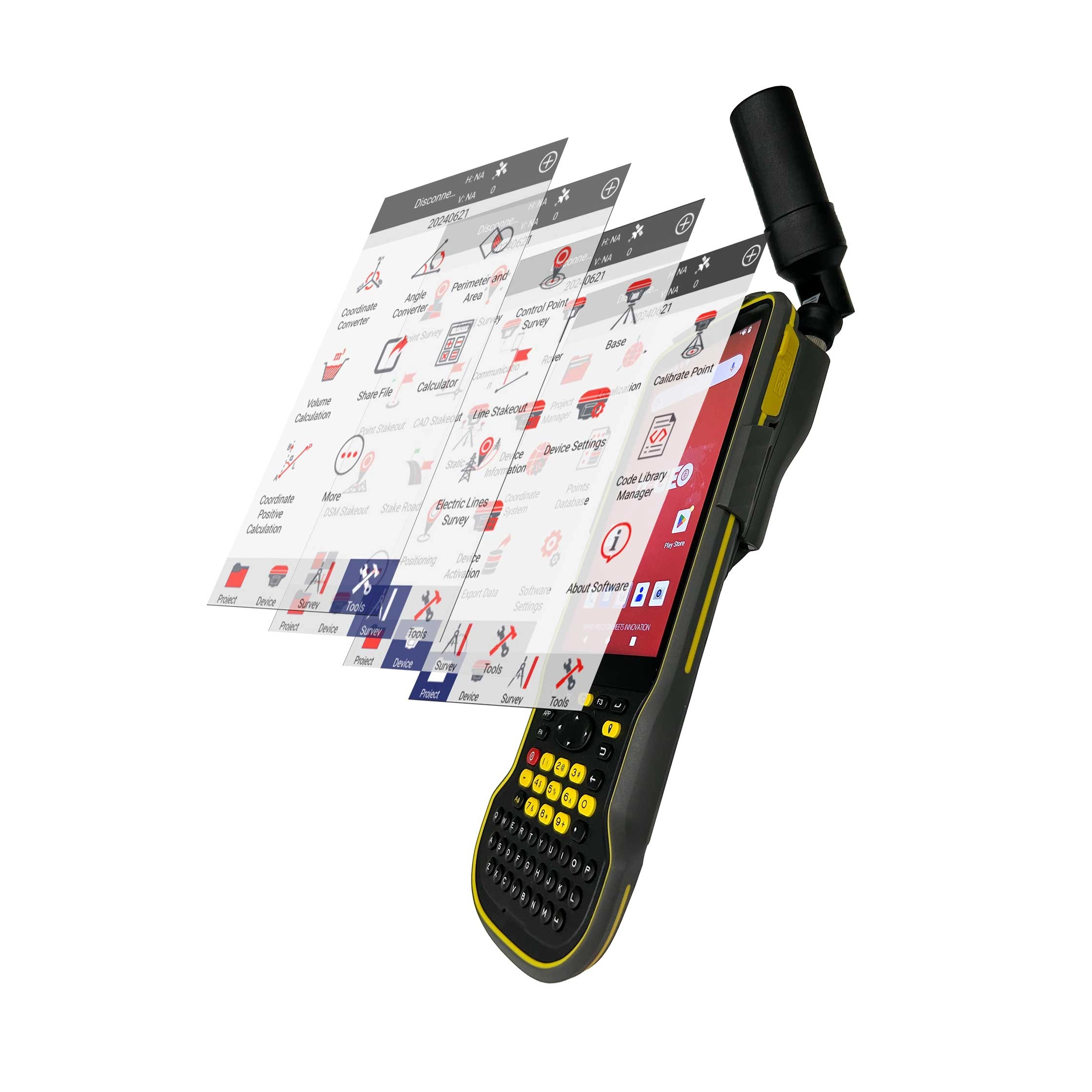

Handheld RTK data collector S60III PRO collection terminal

Equipped with a 5.5-inch sunlight-readable display, users can easily view GIS data tables, complex vector and raster maps, and high-resolution images even in bright sunlight and high-light conditions. Its industrial design, compliant with the IP68 standard, ensures reliable performance in extreme and challenging environments, making it the preferred choice for field professionals, particularly those with demanding equipment requirements.The S60III pro integrates precision GNSS positioning technology and long-range RFID technology, empowering efficient data collection for both individual operators and large field teams.

Inquire Now

Download

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

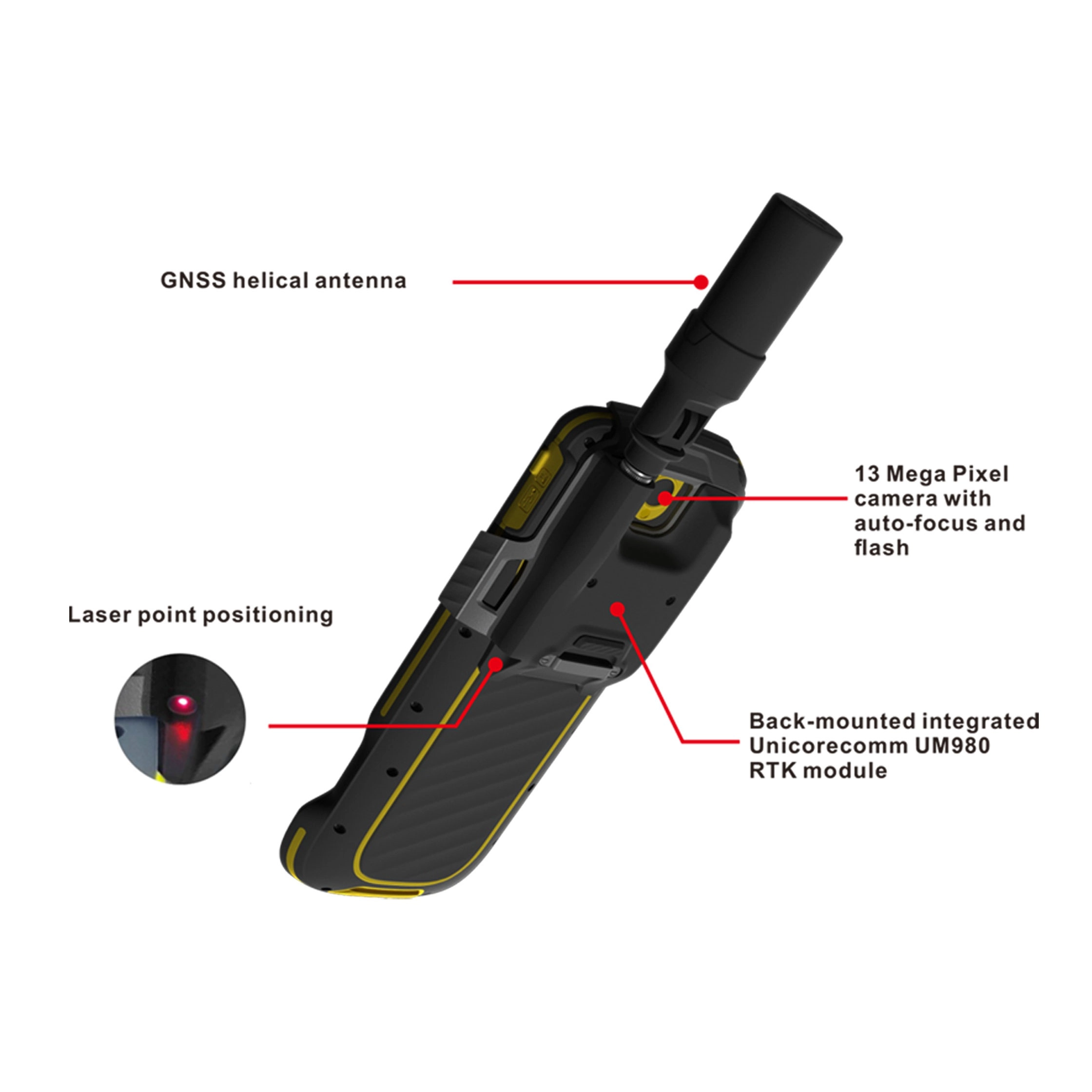

S60III pro-Rugged RTK data collector

Comprehensive Data Collection Terminal with Full Protection

Its industrial design, compliant with the IP68 standard, ensures reliable performance in extreme and challenging environments, making it the preferred choice for field professionals, particularly those with demanding equipment requirements.

The S60III pro integrates precision GNSS positioning technology and long-range RFID technology, empowering efficient data collection for both individual operators and large field teams.

Leading Industry Data Collection Terminal

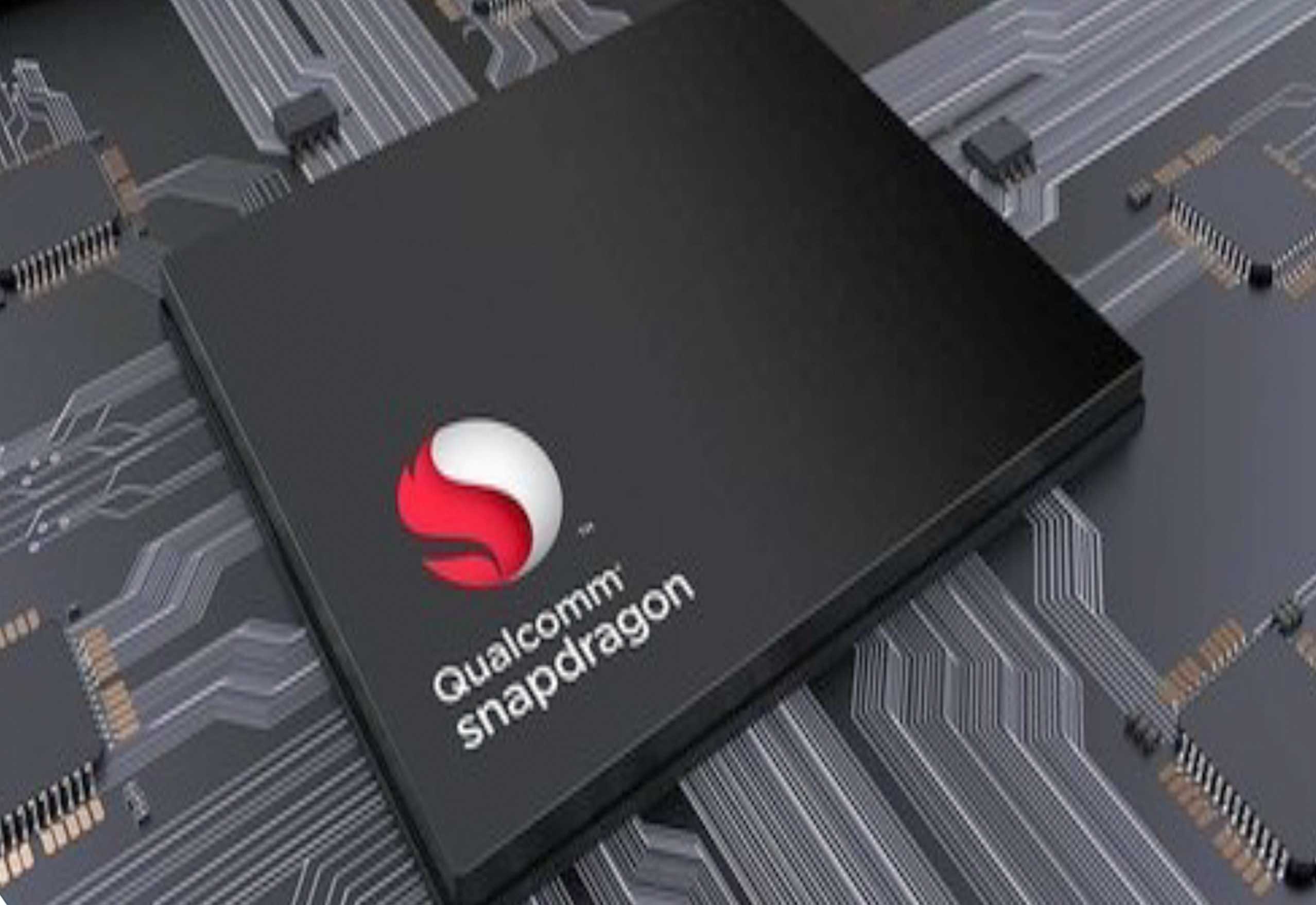

The S60III pro is equipped with the Qualcomm 662 processor, designed with an 11nm fabrication process, providing powerful performance for smooth CAD drawing management and base map display, greatly enhancing productivity.

Dual-band Wi-Fi and 4G support ensure stable and reliable internet connectivity, while the physical USB 3.0 interface allows for faster data transfer, enabling instant uploads of large project files.

The 5.5-inch 1080P resolution industrial display with 500 nits brightness enhances outdoor data collection visibility even in sunlight.

Designed for complex mobile office scenarios

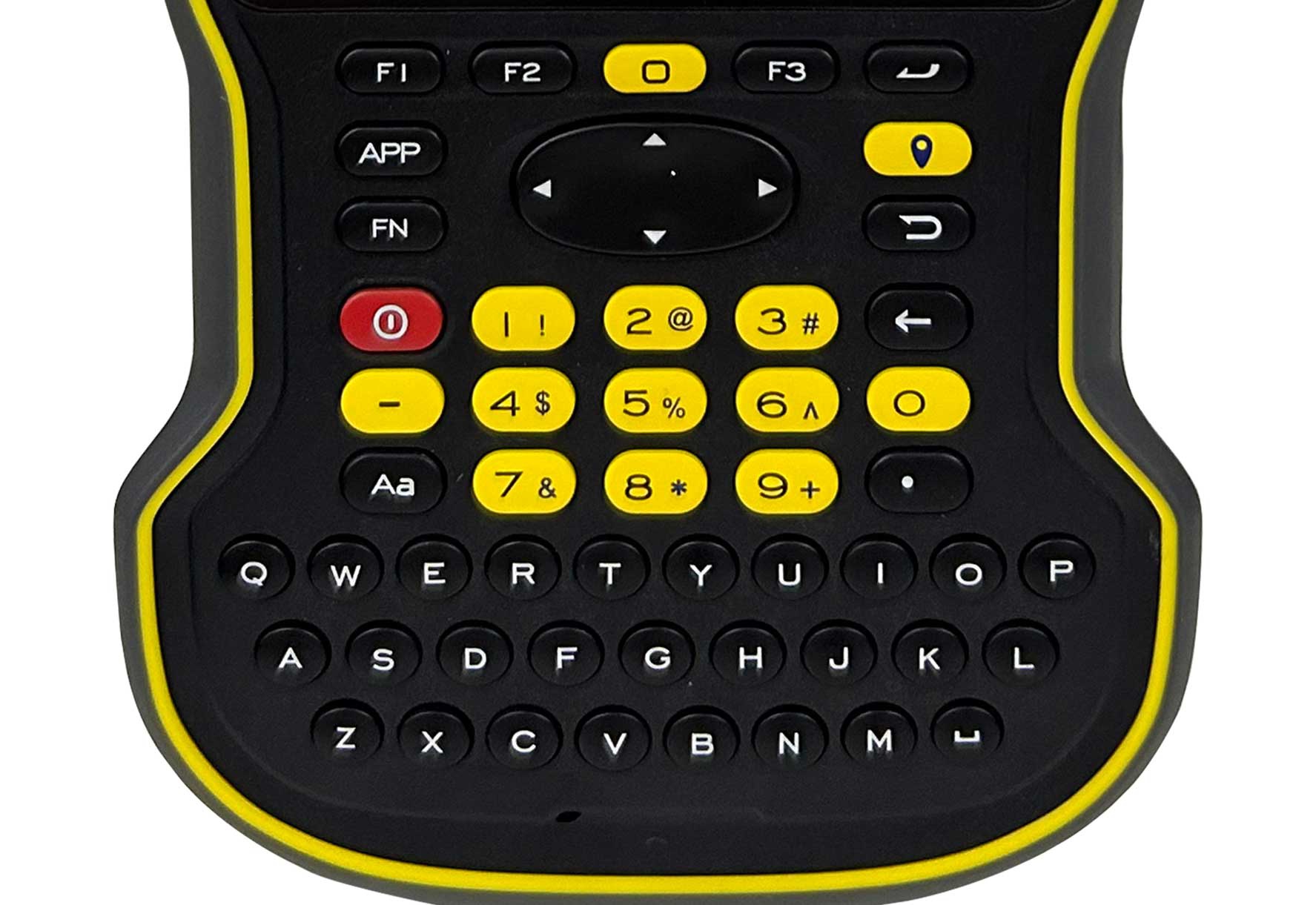

Innovative keypad design aimed at providing an exceptional user experience.

The S60III pro features a popular slim and lightweight design, yet it comes equipped with a high-capacity 9000mAh battery, weighing just a light 420 grams. Additionally, we've incorporated a scratch-resistant and durable Corning glass screen and designed it with IP68 waterproofing to ensure outstanding protection for your data terminal in harsh environments. The brand-new British-style keyboard design has been optimized, allowing for fast data input without changing user habits. Moreover, without increasing the device's size, we've thoughtfully reserved multiple shortcut buttons to assist you in swiftly completing various operations in industry applications. The large-capacity battery design ensures uninterrupted data collection tasks, making the S60III pro an efficient handheld terminal for measurement and mapping applications.

Specifications

System	Operating system	Android 12 GMS supports
	CPU	Qualcomm SDM 662 octa-core 2.0 GHz
	RAM	4GB SDRAM
	Flash memory	64GB
	Memory card	MicroSDHC up to 128GB
Physical	Dimensions (L×W×H)	228mm×96mm×21mm
	Weight	420g with battery
	Operating temperature	-20℃ ~ +65℃ (-4℉ ~ +149℉)
	Storage temperature	-30℃ ~ +70℃ (-22℉ ~ +158℉)
	Waterproof/Dustproof	Ip68
	Shock and vibration	1.2m (4 ft) fall onto concrete
	Humidity	5% ~ 95% non-condensing
	Display	5.5-inch IPS LTPS LCD capacitive multi-touch,
	Display	1920×1080 pixels HD + 401 ppi brightness 500 nit
	Keypad	QWERT key
	Camera	13 MP with auto-focus and flash
GNSS performance	Channels	1408
	Signals tracking	GPS: L1C/A, L2C, L2P, L5
		GLONASS: L1, L2
		BDS: B1, B1C, B2, B2a, B2b, B3
		GALILEO: E1, E5a, E5b, E6*
		QZSS: L1, L2, L5, L6*
		SBAS*: WAAS, EGNOS, MSAS, GAGAN, SDCM
	Signals tracking*	2cm HRMS
	SBAS accuracy*	< 1m HRMS
	L-band	PPP, E6 HAS supports
Communications	SIM card type	Nano-SIM card
	Network modem	GSM: 850/900/1800/1900
		WCDMA: B1/B2/B4/B5/B8
		LTE-TDD: B34/B38/B39/B40/B41
		LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B28
	WiFi	802.11 a/b/g/n/ac, access point mode (2.4G/5G)
	Bluetooth^®	V5.0
	USB	USB Type-C, OTG supports
	NFC	Supports
Electrical	Battery	9000 mAh Li-ion battery
	Battery life*	22 hrs
	Charging time	4 hrs (typically)
Sensors	GNSS	GNSS (BDS, GPS, GLONASS), A-GPS supports
	G-sensor	Supports
	Gyroscope	Supports
	E-compass	Supports
	Light sensor	Supports
	Speaker	Supports
	Microphone	Supports
Standard accessories	A/C charger	Yes
	USB cable	Yes
	Stylus	Yes
	Handstrap	Yes
Certifications	CE, FCC
