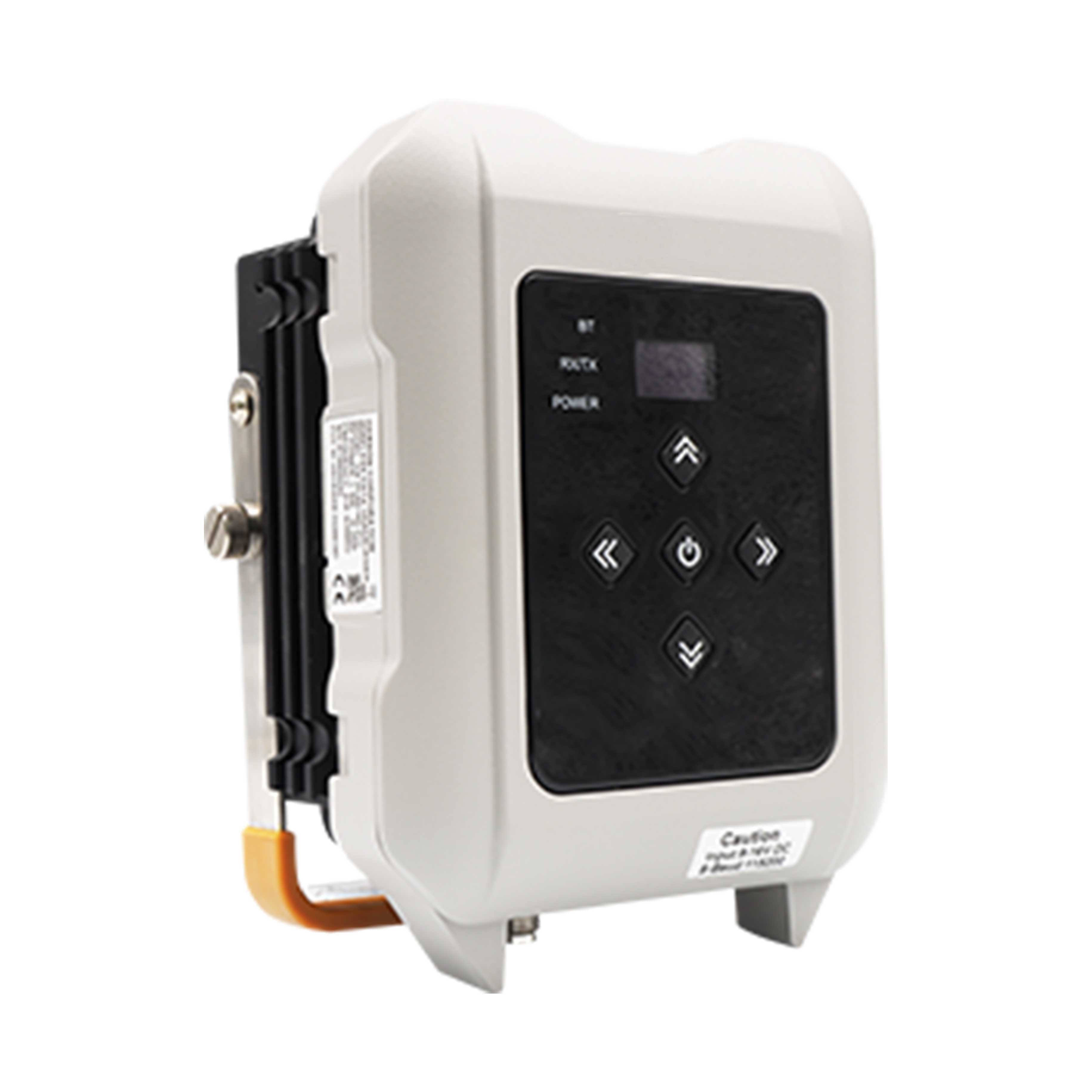

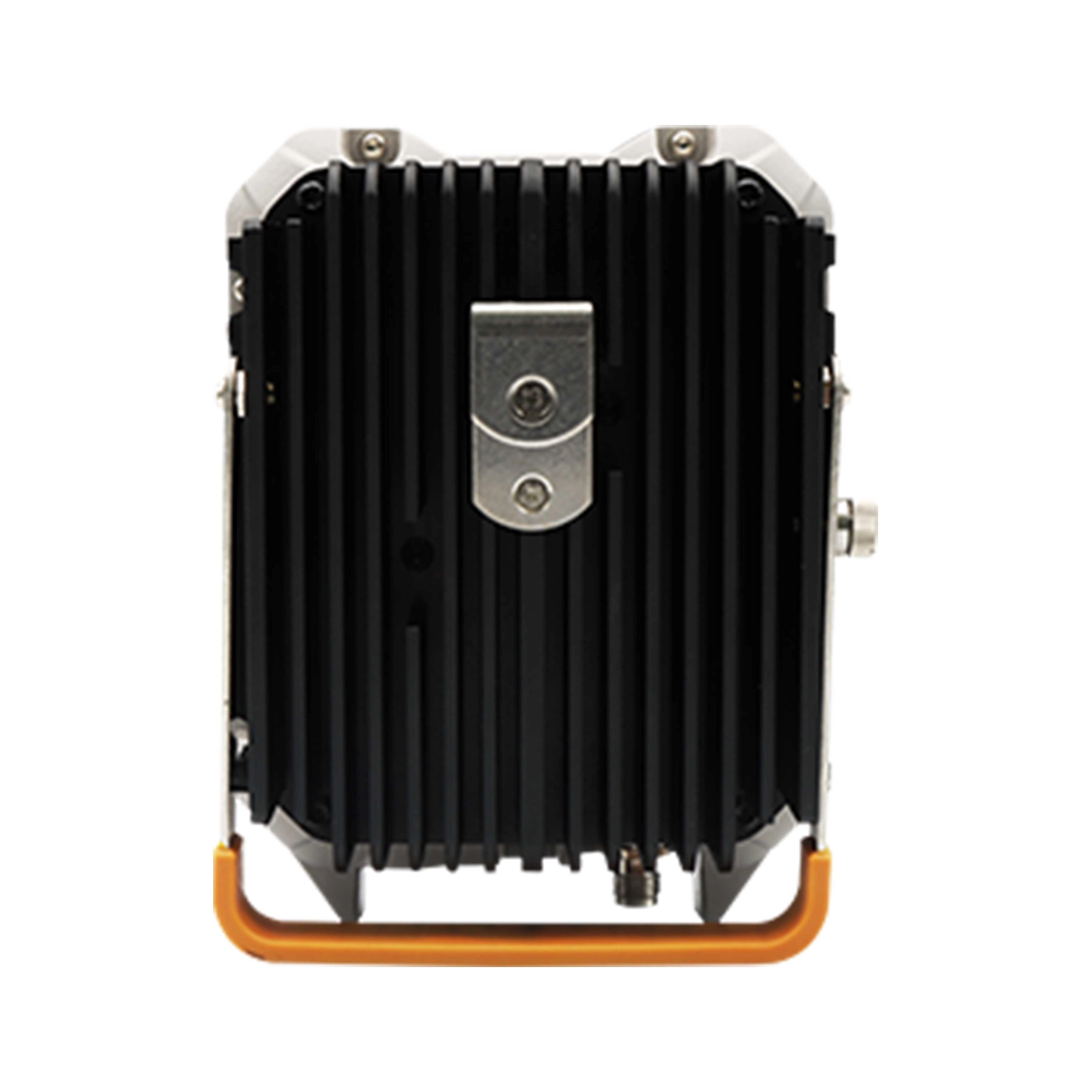

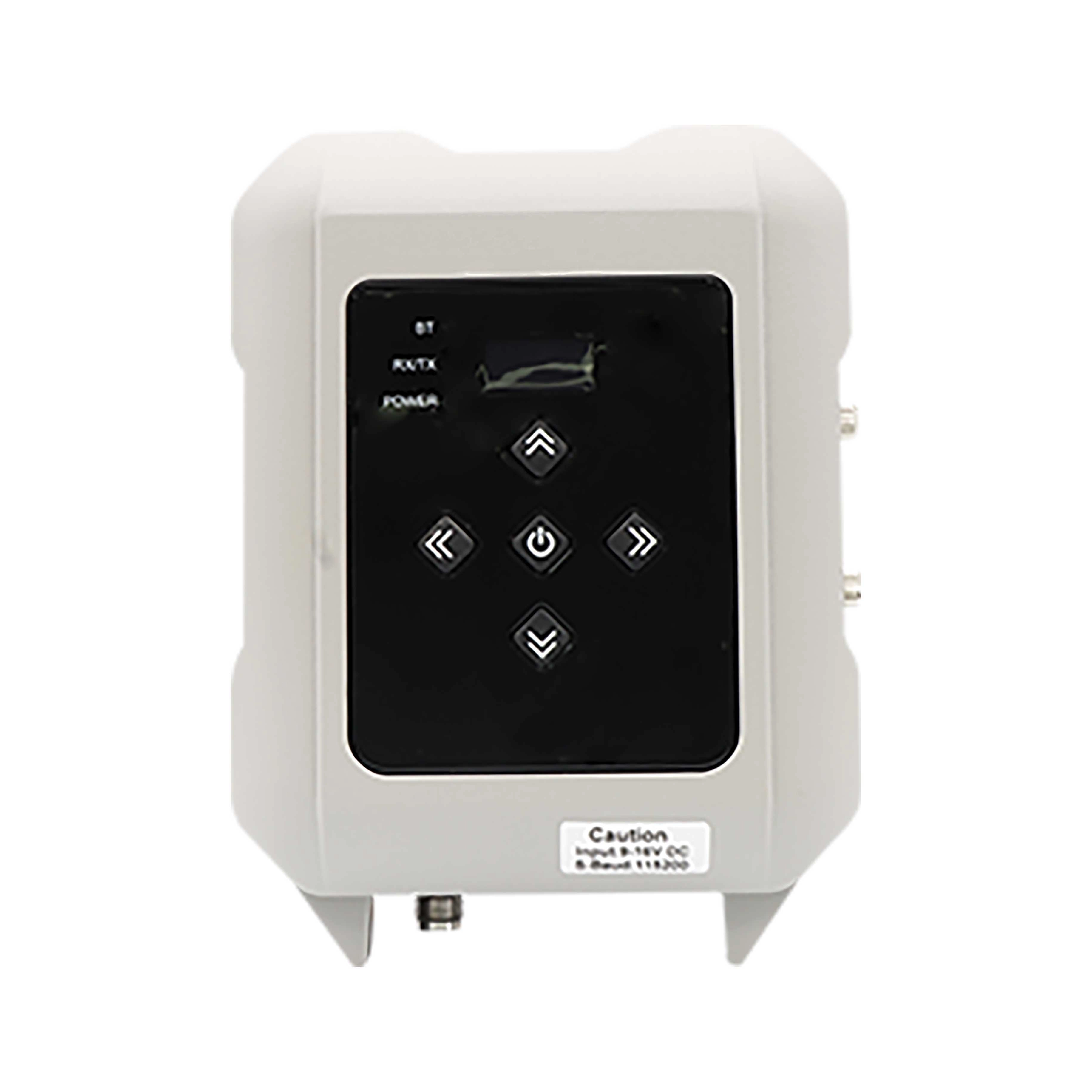

High speed radio Harxon HX-DU8616D for GNSS/RTK surveying and precise positioning

HX-DU8616D is an advanced, high speed, high power, wireless data link built to withstand the demanding conditions of GNSS/RTK surveying and precise positioning. Due to the 35W high transmitting power, connection distances up to 20 kilometers can be covered in favorable conditions. It is designed with a ruggedized IP67 weatherproof enclosure to withstand extreme environments.

Inquire Now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

Available Instrumentation

Intelligent Serial Baud Rate Identification
HX-DU8616D can automatically identify RTK serial baud rate with radio data cable and provide a plug and play form for easy connection between eRadio and RTK.
Multiple Operating Modes
HX-DU8616D is an easy-to-use radio modem that provides dependable performance as either a base, or radio repeater working with other Harxon radio modems in challenging environments.
Convenient Mobile APP Operations
HX-DU8616D also supports the Bluetooth of APP to configure data and updates radio status. Its diagnostic reporting software can realize the built-in reliability monitoring.
Multiple Communication Protocols
HX-DU8616D is a highly versatile device that is capable of supporting multiple communication protocols, including ETALK, TRIMTALK™, TRIMMARK™3, Transparent-EOT, SATEL®

Specifications

GENERAL	Frequency	410MHZ~470MHZ
	Operating Mode	Transceiver
		Transmitte
		Radio Repeater
	Channel Width	12.5KHz125KHZ
	Channels	Up to 32 programmable channels (user selectable)
	Operating Voltage	9V-16V
	Power Consumption(Typical)	Transmit Output Power H:(35W) 85W@12V DC
		Transmit Output Power M:(22W) 60W@12V DC
		Transmit Output Power L:(5W) 35W@12V DC
		Sleep State 2W@12V DC
	Frequency Stability	<±1ppm
	Ingress Protection Rating	IP67
STRUCTURAL	Dimension	175(H)x130(W)x86.5(D)mm
	Weight	2kg
	Operating Temperature	-40°C to +65°C
	Storage Temperature	-50°C to +85°C
	Connector	TNC female
	Data Connector	LEMO 5pin
TRANSMITTER	RF Output Power	H:35W 45.4+0.5dBm @DC 12V
		M:22W 43.4+0.5dBm @DC 12V
		L:5W 37+1dBm @DC12V
	RE Power Stability	t1dB
RECEIVER	Sensitivity	<-114dBm@BER 10-5，9600bps
DATA MODEM	Data Rate	4800bps/9600bps/19200bps
	Data Speed of Serial Interface	9600、19200、38400、57600、115200bps
	Modulation	GMSK/4FSK
BLUETOOTH	Bluetooth Version	2.0/4.0
BLUETOOTH	Bluetooth Antenna	Built-in
